Smart Knives for Summa D Series Plotters

Smart Knives
Smart Knives are supplied as combined blade and holder units - they replace your blade AND your blade holder.
They are pre-set and ready to fit straight into your plotter. See: About Smart Knives
Smart Knives are not "throw away" you buy them only once. See: Exchange
These also fit Gerber P2c and Summa S Class D models (but not Summa Tangential models)
For Summa T and S Class T models See: Summa T Blades
If you have not used Smart Knives before we can send you some to try - we promise you will like them.
If you are unsure about which type/s you need you are welcome to call us on 01928 739799
NOSECAP COLOUR IDENTIFIES TYPE

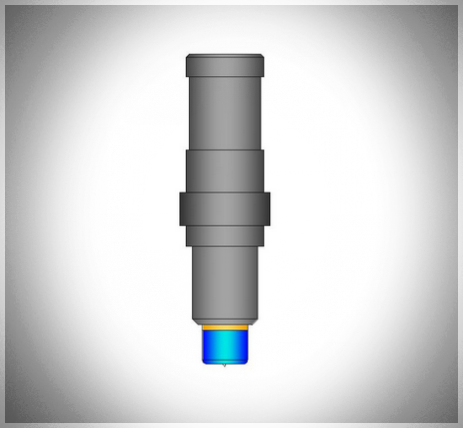

Hsk450V
HSK450V
SMART KNIFE
Offset 0.45mm

For cutting most common materials up to about 300 microns.

Unless you cut difficult or unusual materials this is probably the only type you will ever need.

Reserved for future use

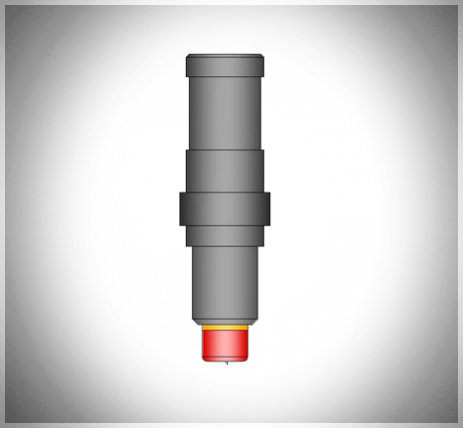

HSK450F
HSK450F
SMART KNIFE
Offset 0.45mm

For cutting thicker materials than can be cut with the blue nosed HSK450V

Useful for flock, thin card, foils, glitter, metallic, reflective and some thick laminates.

Reserved for future use

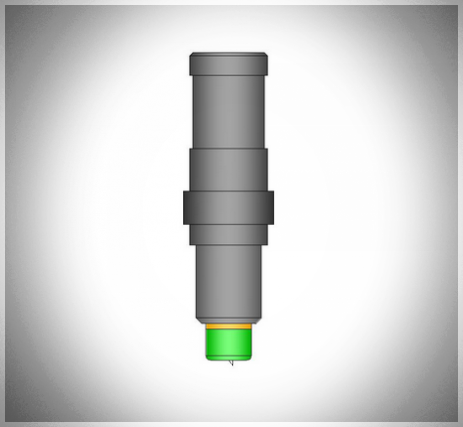

HSK750F
HSK750F
SMART KNIFE
Offset 0.75mm

For cutting thicker materials than can be cut with the red nosed HSK450F

Can be useful for cutting some thicker laminates card etc.

Useful to stonemasons for cuting sandblast tape.
Reserved for future use
HSK750R
HSK750R
SMART KNIFE
Offset 0.75mm

Fine and fragile blade for cutting thick but not tough materials up to about 1.5mm.

Mainly used by stonemasons for cutting thick but soft sandblast mask materials.
(Like some Anchor Tapes)

Reserved for future use

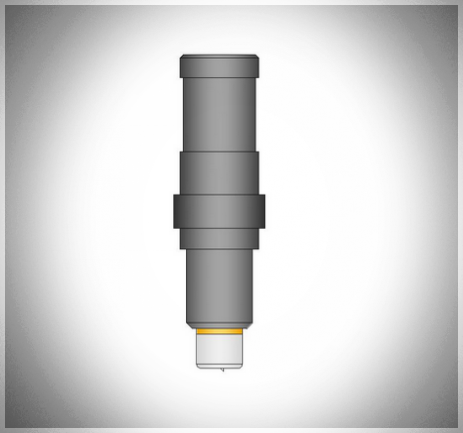

Hsk450TF
HSK450TF
SMART KNIFE
Offset 0.45mm

For cutting very thin and sensitive materials.

Mainly used cutting window film, ruby film and some very thin vinyls.

Reserved for future use
For "ordinary" Summa blades

For Summa T and S Class T models

WE ADVISE YOU ALSO READ

We also make "specials" for cutting unusual materials.
To show them here is more likely to be confusing than constructive.
If you need to solve a cutting problem you are welcome to call us.
We can usually help.
